Magnetic encoder

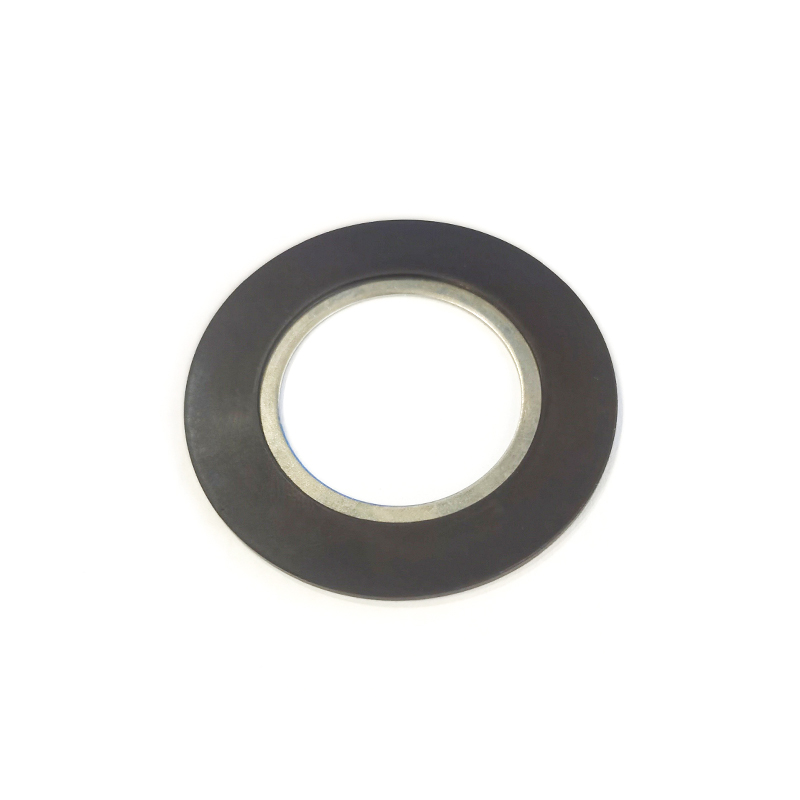

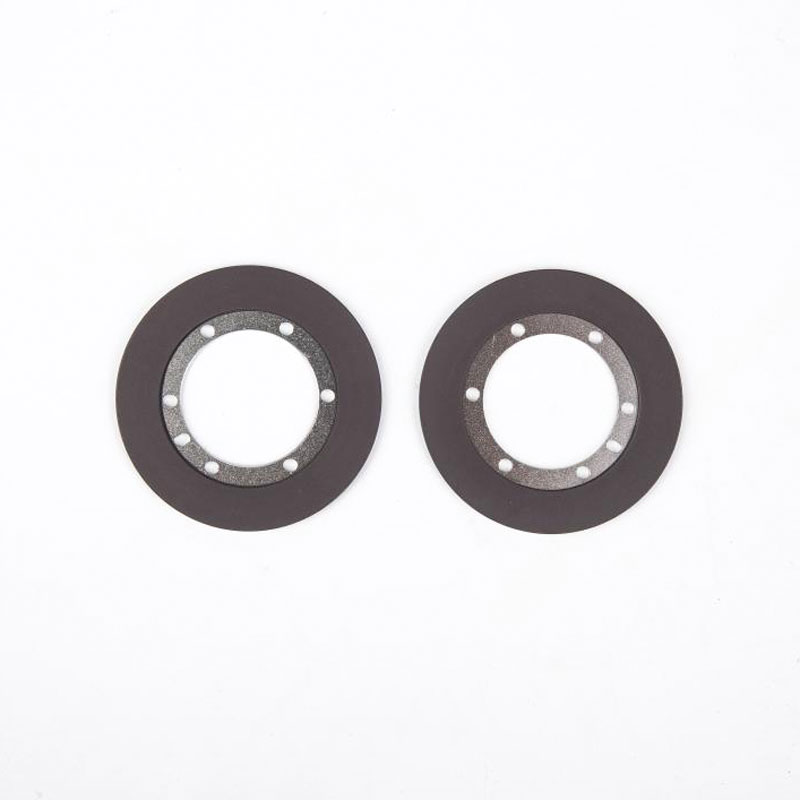

Double Code Magnetic Encoder

Q：How to confirm the quality with us before production?

1) you can get free samples and choose from them, and then we will manufacture according to this quality.

2) send your samples to us, we will produce Dual-channel magnetic encoder according to your quality.

Q：How do I place an order?

Inquiry → quotation → order → payment → delivery → transaction → feedback

Product Details

When the encoder is in operation, the two magnetic field sensors located on the readhead will each generate a sinusoidal signal as they pass through the N and S stages. The phase shift between these two signals is unique for every location around the disk. The readhead converts this analog phase shift into digital signals, each of which corresponds to a unique rotational position on the ring.

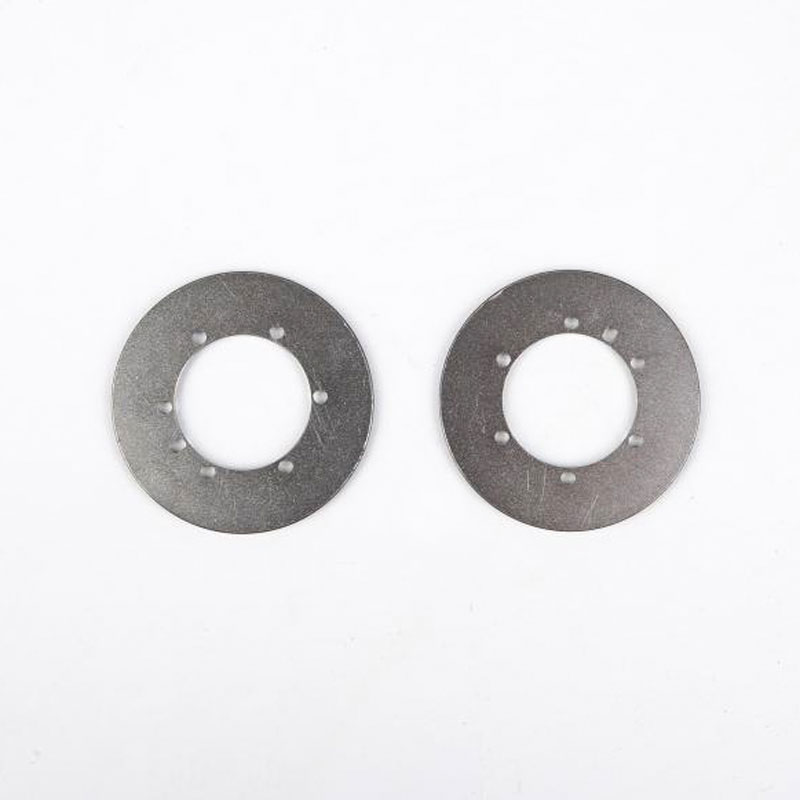

Carrier material: SUS430

Advantages

Double code magnetic encoder mainly includes iron frame and magnetic rubber. Its function is to control the speed and stroke, and to achieve precise positioning. High speed, fast response; dustproof, oil-proof; high anti-vibration level; convenient debugging, simple installation; small size, precision, high resolution and strong anti-interference ability.

Product name	Double Code Magnetic Encoder
Size	Diameter 49mm,For 25mm shaft (Press fit)
Pole	Main code channel 32 is opposite the pole, and curnier code channel 31 is opposite pole
Material	Iron and the magnetic rubber
Package	Carton with wood tray
Supply Ability	10000 Pieces per month
Delivery time	3-7 working days for products in the stock; 15-25 working days for production line products; 40-45 working days for a customized product.
Payment	T/T, Paypal

A Mature Factory You Can Count On

We are professional China Double Code Magnetic Encoder Manufacturers and OEM Double Code Magnetic Encoder factory. Our goal is to provide customized solutions for the market and customers, whether individual products or complete sets of equipment. Although the market, application and customers are different, Hananye has a unique concept to guide customers' success. We will respond patiently and carefully to any inquiries and feedback from customers. For any inquiry from customers, we will provide professional and reasonable quotation as soon as possible. For any new products from customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure products.

Hananye is a professional bearing magnetic encoder manufacturer and supplier. Our bearing magnetic encoder products mainly include bearing magnetic encoder; wheel hub magnetic encoder; brake disc magnetic encoder; 320 poles large magnetic encoder; ABS magnetic sealing encoder; double code magnetic encoder; rubber magnetic encoder and three code magnetic encoder. Our bearing magnetic encoders have simple and compact structure, no contact, long life, high and low-temperature resistance, anti-vibration, anti-corrosion, anti-pollution and strong anti-interference ability. The bearing magnetic encoder also has relatively high reliability in use, is strong and durable, and is suitable for use in some relatively harsh equipment environments.

News

Feb 02,2026

How does a magnetic ring work?

When talking about how a magnetic ring works, you can imagine it as a circle that performs "magic." It can transmit information without directly touching other parts. The Invisible "Magnetic Ruler" ...
Jan 26,2026

What is the difference between magnet ring and metal ring?

In a car's ABS system, the magnetic ring and the ordinary metal toothed ring (usually called a Metal Ring or toothed sensor ring) perform similar functions, but their characteristics and working princ...
Jan 19,2026

How does a ABS magnetic ring work?

To understand how an ABS magnetic ring works, we can imagine it as a "magnetic speedometer." Unlike older systems that relied on gears, it uses magnetism to transmit information. ▪ The "Arrangement"...
Jan 12,2026

What is an ABS magnetic ring?

In the world of automobiles, the ABS magnetic ring plays the role of a "detector." It's an indispensable small part of the anti-lock braking system (ABS), and although inconspicuous, it's crucial for ...

Honor

Industry Knowledge

Double Code Magnetic Encoder

A double code magnetic encoder is a type of rotary encoder that uses two sets of magnetic poles to provide position feedback. One set of magnetic poles is used for absolute position sensing, while the other set is used for incremental position sensing.

Here are some of the characteristics and benefits of a double code magnetic encoder:

Dual sensing modes: The absolute and incremental sensing modes of a double code magnetic encoder allow for both absolute position detection and precise incremental motion control.

Non-contact sensing: The magnetic sensor does not come into contact with the rotating shaft, which eliminates the need for regular maintenance and prolongs the lifespan of the encoder.

Easy installation: Double code magnetic encoders are easy to install and do not require any additional components such as couplings or adapters.

Versatility: Magnetic encoders can be used in a variety of applications, including robotics, automation, machine tools, and medical devices.

What are the advantages of double code magnetic encoder

Here are some of the advantages of a double code magnetic encoder:

High resolution: Double code magnetic encoders can provide high resolution position feedback, typically up to 16-bit or higher, which allows for very precise motion control.

Dual sensing modes: The absolute and incremental sensing modes of a double code magnetic encoder allow for both absolute position detection and precise incremental motion control, making it highly versatile.

Non-contact sensing: The magnetic sensor does not come into contact with the rotating shaft, which eliminates the need for regular maintenance and prolongs the lifespan of the encoder.

High accuracy: Double code magnetic encoders offer high accuracy, making them suitable for use in applications that require precise motion control.

Cost-effective: Double code magnetic encoders are generally more cost-effective than other types of high-resolution encoders, making them an attractive option for applications where cost is a concern.

What are the types of double code magnetic encoder

There are several types of double code magnetic encoders, including:

Parallel Axis Double Code Magnetic Encoder: This type of encoder uses two magnetic sensors positioned in parallel to each other, with one sensor providing absolute position feedback and the other providing incremental position feedback.

Radial Double Code Magnetic Encoder: This type of encoder uses two magnetic sensors positioned radially, with one sensor providing absolute position feedback and the other providing incremental position feedback.

Axial Double Code Magnetic Encoder: This type of encoder uses two magnetic sensors positioned axially, with one sensor providing absolute position feedback and the other providing incremental position feedback.

Multi-Turn Double Code Magnetic Encoder: This type of encoder can provide position feedback over multiple revolutions, making it suitable for applications that require precise position control over long periods of time.

Hollow Shaft Double Code Magnetic Encoder: This type of encoder has a hollow shaft design, which allows it to be mounted directly onto a motor shaft, eliminating the need for additional components such as couplings or adapters.
